Featured Three-Phase AC Electric Motors & Accessories
Engineered for continuous heavy duty performance under Thailand’s ambient thermal conditions. Fully compliant with IEC 60034-30-1 and TISI energy standards.
IE3 Premium

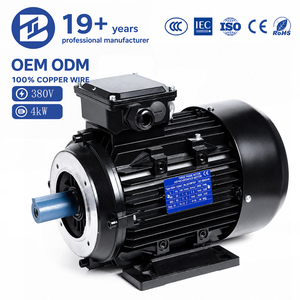

BIOTE YE3-100L-4 High Efficiency 380V Industrial Motor
Technical Engineering Specifications for the Greater Bangkok Electrical Grid & Tropical Environment
procuring three-phase AC induction and synchronous motors for installation in Greater Bangkok—encompassing industrial hubs such as Samut Prakan, Bangpoo Industrial Estate, Lat Krabang Industrial Estate, Pathum Thani, and the adjacent Eastern Economic Corridor (EEC)—requires strict adherence to localized electrical supply dynamics and intense tropical environmental stresses. Electrical equipment operating in Central Thailand encounters unique operational conditions that differ significantly from temperate western climates.
Key Grid Baseline: Industrial facilities in Bangkok operate under the Metropolitan Electricity Authority (MEA) and Provincial Electricity Authority (PEA) standardized 3-phase grid supply of 380V to 415V at 50Hz. Voltage tolerance standard compliance requires stable torque output under ±10% voltage fluctuation and minor harmonic distortion induced by high VFD density in modern plants.
Bangkok experiences relative atmospheric humidity fluctuating between 75% and 95% RH year-round, coupled with ambient plant room temperatures frequently exceeding 40°C to 45°C. Under standard off-the-shelf electric motor specifications, humidity ingress causes rapid insulation breakdown via moisture absorption into stator winding slots, resulting in inter-turn short circuits and insulation resistance degradation.
To eliminate prematurely burnt stators, our supplier network manufactures three-phase AC motors equipped with Class H thermal insulation systems, calibrated to operate within Class B temperature rise limits (maximum 80K rise). Windings undergo double-dip Vacuum Pressure Impregnation (VPI) utilizing anti-fungal, moisture-resistant epoxy resin varnish. This process ensures zero air pockets within winding turns, maximizing thermal conductivity and preventing condensation accumulation during offline cooling cycles.
2. Ingress Protection (IP55 vs IP66) & Bearing Sealing
Industrial applications along the Chao Phraya River basin and coastal industrial zones face continuous exposure to water splash, corrosive humidity, and airborne dust. Standard IP54 frames are inadequate. Our premium IE3, IE4, and YE5 three-phase AC motors incorporate IP55 as standard, with upgraded IP65/IP66 options.
Mechanical sealing architecture utilizes spring-loaded double-lip oil seals on both Drive End (DE) and Non-Drive End (NDE) shaft extensions. Precision cast iron bearing covers feature labyrinth seal channels and brass shaft grounding rings (SGR) to divert capacitive VFD bearing currents, eliminating electrical discharge machining (EDM) fluting marks on SKF/FAG bearing raceways.
Localized Application Scenarios Across Bangkok Industrial Corridors
As Bangkok transitions toward high-tech automated manufacturing under the national Thailand 4.0 strategy, energy-efficient and durable three-phase AC electric motors serve as the foundational prime movers across critical sectors:
HVAC & Commercial District Cooling
Powering heavy-duty centrifugal chillers, primary chilled water pumps, and rooftop cooling tower axial fans across Bangkok’s massive commercial complexes and high-rise towers. Designed for 24/7 S1 continuous duty with ultra-quiet noise signatures.
Municipal Dewatering & Flood Drainage
Crucial for municipal pumping stations handling high-volume stormwater evacuation during the monsoon season. Motors feature high starting torque (Locked Rotor Torque up to 2.8x nominal) to handle heavy sediment and solids loading without stalling.
Food Processing & Beverage Bottling
Serving major food processing facilities in Pathum Thani and Samut Sakhon. Featuring stainless steel output shafts, washdown-duty IP66 enclosures, and non-toxic paint coatings resistant to organic acid cleaning agents.
Energy Efficiency & Lifecycle ROI Matrix for Bangkok Plant Operators
Electricity costs represent up to 90% of an industrial motor’s total total cost of ownership (TCO) over a 10-year operating span. Under the Thailand PEA/MEA Time-of-Use (TOU) tariff rate (averaging 4.32 THB per kWh during peak hours), upgrading from legacy IE1/IE2 induction motors to premium IE3, IE4, or Permanent Magnet YE5 motors yields rapid financial payback.
Efficiency Class
Motor Technology Type
Avg. Efficiency (37kW / 4P)
Thermal Loss Reduction
Est. Payback Period (Bangkok Grid)
TISI Compliance Status
IE2 High Efficiency
Standard AC Induction
92.7%
Baseline
Standard Reference
Phase-out Recommended
IE3 Premium Efficiency

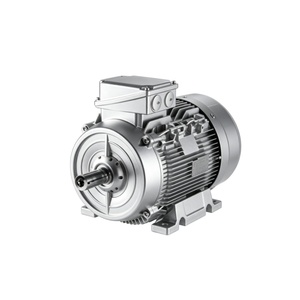

Optimized AC Induction (YE3/1LE0)
93.9%
-17.5% Thermal Losses
8 - 12 Months
Mandatory Baseline Standard
IE4 Super Premium

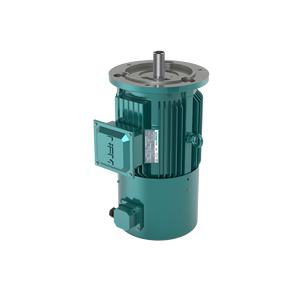

Advanced Induction / Supror
94.8%
-29.2% Thermal Losses
12 - 16 Months
Exceeds DIW Targets
YE5 Ultra Premium

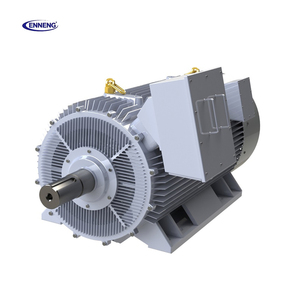

Permanent Magnet Synchronous (PMSM)
96.2%
-48.0% Thermal Losses
14 - 18 Months
BCG Economy Gold Standard
*Note: Calculations based on 6,000 operational hours/year at 75% rated load under standard MEA peak industrial tariffs in Greater Bangkok.
Backing your industrial machinery with robust motor technology requires more than off-the-shelf hardware. Drawing from over 50 years of combined engineering inheritance (rooted in Hoyer Motors and global VMS Group partnerships), our direct supply channels provide unparalleled security for mission-critical industrial drives:
1
70,000+ Motor Centralized Stock: Unrivaled inventory buffer allowing instant dispatch to Suvarnabhumi Airport logistics hubs and Laem Chabang Port, minimizing emergency plant shutdown downtime.
Single Point of Contact Lifecycle Support: Comprehensive quality control, full Factory Acceptance Testing (FAT) reports, vibration analysis certificates, and 24/7 MRO field service capabilities across Thailand.
Frequently Asked Questions (FAQ) for Sourcing Three Phase Motors in Thailand
What is the standard delivery lead time for industrial motor shipments serving factories in Bangkok?

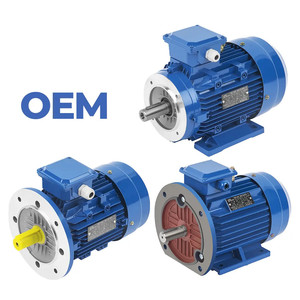

Standard IEC frame motors (YE3, IE3, TECHO series from 0.75kW to 45kW) stored in our regional logistics centers can be delivered directly to Bangkok, Samut Prakan, and Chonburi industrial zones within 3 to 5 business days. Custom engineered units (special shafts, high-voltage, explosion-proof Ex d/Ex de) are supplied with fast-track factory lead times of 3 to 5 weeks.
How do high ambient temperatures in Thailand affect motor derating?
Standard motor ratings assume a nominal maximum ambient temperature of 40°C per IEC 60034-1. In Bangkok, plant enclosures often reach 45°C–50°C. Our motors utilize Class H insulation with Class B temperature rise margins, allowing full rated output up to 45°C ambient without derating. For temperatures exceeding 50°C, we provide custom winding configurations or forced-ventilation cooling units (IC416).
Are these three-phase AC motors compatible with Variable Frequency Drives (VFDs)?
Yes. All supplied IE3, IE4, and YE5 three-phase induction and PM motors feature inverter-duty phase insulation and spike-resistant magnet wire rated for high dV/dt voltage peaks up to 1600V. For frame sizes 280 and larger operating on VFDs, insulated Non-Drive End (NDE) bearings are fitted as standard to eliminate shaft voltage discharge.
Can your factories supply direct replacement motors for older Japanese (JIS) or European (IEC) machines?
Absolutely. We specialize in cross-referencing legacy motor frame dimensions (shaft height, flange pitch diameter, foot bolt spacing). We routinely supply drop-in replacements for older JIS C 4210 and European IEC frames, ensuring zero mechanical modification during site retrofits.
Do your products comply with Thai Industrial Standards Institute (TISI) regulations?
Yes. Our three-phase AC induction motors conform fully to standard TIS 2087-2544 for electrical performance and international efficiency standards IEC 60034-30-1. Full CE, UL, CSA, and ISO9001 documentation packages are provided with every factory shipment.
Speak directly with our technical drive application engineers for motor sizing, CAD 3D models, energy audits, and factory direct supplier pricing for Greater Bangkok installations.
