Explore our factory-direct selection of precision-engineered vibration, velocity, and multi-axis thermal sensors designed for direct integration into electric motors, gearboxes, pumps, and automated marine propulsion systems.
In modern automated process plants, marine vessels, and heavy manufacturing facilities, electric motors serve as the foundational muscle of operation. Unscheduled equipment downtime due to catastrophic bearing failure, winding breakdown, or mechanical misalignment results in catastrophic operational losses. As a premier custom OEM predictive maintenance motor sensors factory and global exporter, our engineering philosophy focuses on delivering actionable diagnostic telemetry prior to mechanical structural degradation.
Conventional threshold-based monitoring is insufficient for modern high-reliability standard IE2, IE3, and IE4 motors operating under variable torque and high dynamic load profiles. Modern predictive diagnostics require high-bandwidth multi-axis sensing. By combining tri-axial MEMS accelerometers, piezoelectric vibration transducers, high-frequency acoustic emission sensors, contact infrared temperature probes, and magnetic flux density coils, our OEM sensing modules record multi-dimensional failure signatures in real time.
Capturing up to 25.6 kHz sampling rates allows early detection of micro-spalling in bearing inner/outer races long before velocity RMS shifts manifest.
Direct coupling to bearing housings ensures sub-second thermal tracking, differentiating normal load-induced heat from friction caused by lubricant starvation.
Housed in heavy-wall AISI 316L stainless steel, certified for Zone 0/1 hazardous marine, chemical, and offshore explosive gas environments.
To provide maximum engineering value for original equipment manufacturers (OEMs), our sensor architecture utilizes dynamic Fast Fourier Transform (FFT) extraction right at the edge. The following matrix illustrates how our 5-in-1 multisensor configurations address distinct physical motor degradation mechanisms:
| Motor Failure Mode | Primary Sensor Domain | Frequency Bandwidth | Signal Extraction Protocol | Typical Diagnostic Lead Time |
|---|---|---|---|---|
| Bearing Flaking / Spalling | High-Bandwidth Acceleration | 5 kHz – 25.6 kHz | Demodulation / Peak Vue Envelope | 3 to 6 Months Ahead |
| Rotor Dynamic Imbalance | Tri-Axial Velocity Transducer | 10 Hz – 1 kHz | 1X RPM Fundamental Harmonics | 1 to 3 Months Ahead |
| Shaft Misalignment & Soft Foot | Multi-Axis Force & Torque / Velocity | 10 Hz – 2 kHz | 2X & 3X Harmonics Phase Shift | Immediate upon Start-up |
| Stator Winding Thermal Breakdown | Contact Platinum RTD / Infrared Sensor | DC – 1 Hz Thermal Slope | Thermal Hysteresis Trend Delta | 2 to 4 Weeks Ahead |
| Loosening & Structural Resonance | 6-Axis Force Torque & Acceleration | 2 Hz – 500 Hz | Cross-Channel Coherence Spectral Shift | Real-Time Threshold Warning |
Global industrial procurement directors and OEM system integrators face increasing pressure to transition from reactive component replacement to standardized, intelligence-embedded power units. As manufacturing plants digitize under Industry 4.0 and smart maritime regulations expand, procurement trends for predictive maintenance sensors have shifted dramatically:
Major electric motor manufacturers no longer view predictive maintenance sensors as optional aftermarket add-ons. System integrators now mandate factory-cast mounting pads, integrated M12 connector recesses, and internal wiring paths for vibration and thermal transmitters during initial casting. Our factory provides custom OEM housing designs, custom thread sizing (M8x1.25, 1/4-28 UNF, Quick-Fit Magnetic), and custom private-label branding for seamless integration into high-efficiency motor product lines.
While wireless sensors dominate light-duty monitoring, critical continuous-duty motors in power generation, marine propulsion, and heavy mining require noise-immune, zero-latency wired connections. The industry standard is rapidly converging on hybrid architecture: low-power RS485 Modbus RTU and IO-Link protocols for direct PLC connection, combined with Edge AI processors that transmit processed peak values via MQTT or OPC UA over Time-Sensitive Networking (TSN).

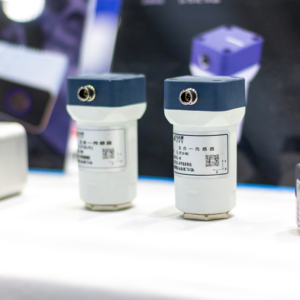

Future-proof procurement demands more than single-channel vibration velocity transmitters. The market is migrating to integrated 5-in-1 and 6-axis multisensor nodes capable of analyzing combined vibration, surface temperature, ambient humidity, magnetic field variation, and acoustic emission simultaneously. By applying lightweight anomaly-detection machine learning algorithms directly within the sensor firmware, false positive alarms caused by variable plant operational loads are eliminated.
Building upon over 50 years of combined application experience within the industrial electric motor and marine propulsion industry, our enterprise capabilities guarantee unmatched quality, supply chain security, and custom engineering support for global buyers.
Drawing from half a century of hands-on motor application experience, we customize sensor sensitivity, dynamic range (±16g to ±500g), and enclosure ingress protection (IP66 to IP68 submersible) to match exact application operational limits.
From raw piezoelectric crystal selection and PCB surface-mount assembly to final calibration, environmental chamber thermal testing, and custom laser branding, we manage the complete manufacturing lifecycle in-house.
To safeguard OEM assembly lines against supply chain disruptions, we maintain strategic safety stocks of critical sensing elements, 4-20mA velocity transmitters, and RS485 communication boards ready for immediate export dispatch.

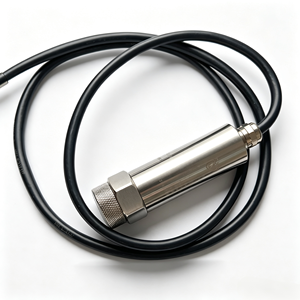

Whether you require high-volume manufacturing of standard 4-20mA loop-powered vibration transmitters for centrifugal pumps and cooling fans, or specialized multi-axis intrinsically safe sensors for marine propulsion systems, our factory delivers compliant, fit-for-purpose solutions tailored to your operational specifications.
Contact our senior IIoT application engineers to discuss custom housing designs, high-volume production orders, technical specifications, and factory-direct export quotes for your predictive maintenance motor programs.
